GB SERIES SEALED FREE MAINTENANCE VRLA AGM BATTERY
Designed floating service life: 8-10 years @ 25 °C/77 °F.
Summary for solar agm battery
CSBattery GB series lead acid batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle. The CSBattery VRLA AGM battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the GB range features 30% higher cyclic life with 10 years of float life when compared to the other standard Duration range.
Features and Advantages for sealed free maintenance lead acid battery
30% more cyclic life through innovation at the PAM additives
Long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20 °C to 50°C
3% Low self-discharge rate
Very good deep cycle performance: up to 700 cycles @50% DOD
Excellent deep discharge recovery capability
Construction for VRLA AGM battery
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover -Fire resistance ABS, water proof
Pillar seal - Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
Applications for VRLA SMF battery
Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Servers, Telecom, Emergency systems, Security systems, and so on.
Charging voltage and settings for Sealed MF VRLA AGM battery
l . Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6. Max. charge current allowable : 0.25C
CSBattery 12v 10ah Low capacity Durable Sealed Lead Acid AGM battery for Solar/Telecom
|Nominal Voltage||12V (6 cells per unit)|
|Design Floating Life @ 25ºC||5 Years|
|Nominal Capacity @ 25ºC||20 hour rate@ 21.0A, 5.4V||10Ah|
|Capacity @ 25ºC||10 hour rate (37.8A, 5.4V)||9.5Ah|
|5 hour rate (66.8A, 5.25V)||8.9Ah|
|1 hour rate (233.3A, 4.8V)||6.6Ah|
|Internal Resistance||Full Charged Battery@ 25ºC||≤16.0mΩ|
|Max.Discharge Current||@ 25ºC 60A(5s)|
|Capacity affected by Temperature (10 hour )||40ºC||105%|
|Charge (Constant Voltage) @ 25ºC||Standby Use||Initial Charging Current Less than 3A Voltage 13.6 - 13.8V|
|Cycle Use||Initial Charging Current Less than 3A Voltage 14.4 - 14.9V|
|Dimension (mm*mm*mm)||Length 152±1 * Width 99±1 * Height 96±1 (Total Height 102±1)|
CSBattery Product Structure
|Component||Positive plate||Negative plate||Containe r &Cover||Safety valve||Terminal||Separator||Electrolyte||Pillar seal|
|Features||Thick high Sn low Ca grid with Special paste||Balanced Pb-Ca grid|
for improved recombinati on efficiencv
|Fire resistanc e ABS (UL94-V0octional)||Flame|
Si-Rubber and aging resistance
|Female Copper lnsert||Advanced PVC /AGM|
separator for high pressure cell desbm
|Silicon Gel||Two layers epoxy resin seal|
Ø Positive plate : Thick high Sn low Ca 3D flat pasted plate Ø Negative plate : Balanced Pb-Ca grid and AM with Supper-C addtives
Ø Separator : Imported Amer-sil PVC separator for Gel battery Ø Electrolyte : nano GEL electrolyte
Ø Battery container and cover : ABS for higher temperature Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Ø Relief valve : Complete with integrated flame arrestor
CSBattery Quality Control
Ø IEC 60896-21/22 Ø IEC 61427 Ø ISO9001/14001/18001 Ø Eurobat guide, long life Ø BS6290 part 4
Ø GB/T 22473 Ø CE Ø MH63727-UL
Applicationg for HTB High Temperature Deep Cycle GELBattery:
ØElectric Powered Vehicles ØWheel Chairs ØBTS Stations ØMedical Equipment Ø Solar and Wind ØGolf Cars and Buggies ØPower Tools ØControl System ØUPS systems ØEmergency systems

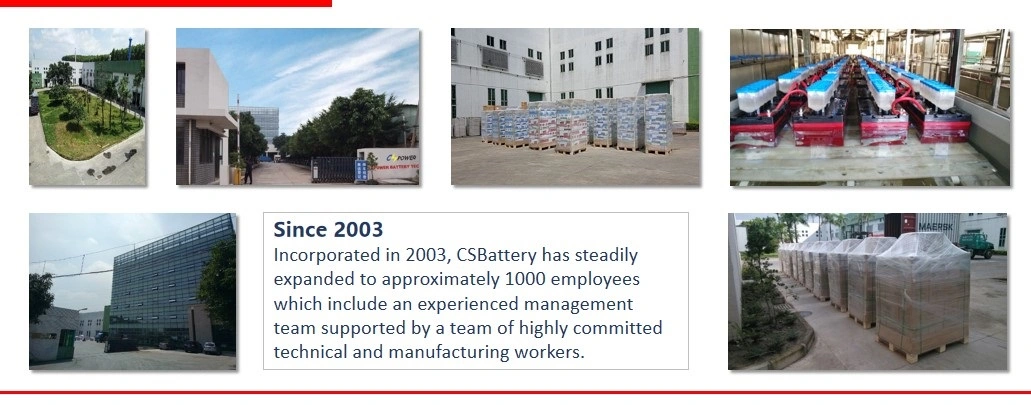

CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Ø Q1. Can your battery be delivered by sea and air?
A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products.
Ø Q2. Can I put my logo on the battery?
A: Yes, you can print your logo on our batteries when you order reach 20ft container quantity. If not, price will be negotiated.
Ø Q3. Can I fast charge my battery?
A: Fast charging is not recommended as ifs harmful for the battery.
ØQ4. Can I do a partial replacement of my batteries?
A: Partial battery replacement of lead acid battery banks is not recommended.
Ø Q5. How about your delivery time usually?
A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
Ø Q6. Are you a battery manufacturer, and do you produce the plate by yourself ?
A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we produce plates by ourselves.
Ø Q7. What certificate your company have?
A: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
Ø Q8.What is your warranty time for VRLA battery ?
A: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.
Ø Q9. Why battery has different capacity at different hour rate?
A: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.
Ø Q10. What is the shelf life of VRLA battery and how to maintain the battery?
A: The limiting factor of battery's shelf life is the rate of self-discharge which itself is temperature dependent. VRLA batteries will self-discharge less than 3% per month at 77° F (25° C). VRLA batteries should not be stored for more than 6 months at 77° F (25° C) without recharged. If in hot temperature, recharge it every 3 month. When batteries are taken out of long storage, it is recommended to recharge before use.
Ø Q11. How does your factory control the quality?
A: We Adopt ISO 9001 quality system to control the quality. We have Incoming Quality Control (IQC) department to test and confirm raw material meets high quality producing requirements, Production Quality Control (PQC) department contains The first Inspection, In-process quality control, acceptance inspection and full inspection, Outgoing Quality Control (OQC) department confirm no defective batteries come out from the factory.
Product Specifications and Models
|6V 12V Low capactiy SEALED FREE MAINTENANCE AGM BATTERY|
|Model||Nominal Voltage (V)||Capacity (Ah)||Dimension (mm)||Net Weight||Gross Weight||Terminal|
