High-efficiency and high-efficiency dry magnetic separator Cr 250-1000

Series CR Magnetic Separator is dry type roller magnetic separator. The rollers are made of high energy permanent magnetic materials rare earth NdFeB, which is special designed by YYDLS (Yueyang Dalishen), for better beneficiation of Fe minerals such as hematite, magnetite, and non metallic minerals purification, such as feldspa

Featured Products

Series CR Magnetic Separator is dry type roller magnetic separator. The rollers are made of high energy permanent magnetic materials rare earth NdFeB, which is special designed by YYDLS (Yueyang Dalishen), for better beneficiation of Fe minerals such as hematite, magnetite, and non metallic minerals purification, such as feldspar, kaolin, clay, etc.

Application (magnetic separation, magnetic concentration, magnetic beneficiation, magnetic selecting, magnetic processing):
1. Discarding tailings and purifying of weak magnetic coarse minerals, such as hematite, ilmenite, and manganese, etc.
2. Processing non-metallic minerals, such as andalusite, sillimanite, rutile, kyanite, garnet, quartz, frigidite, feldspar, zircon, adamantite and diamond, etc.
3. Removing ferrous impurities from abrasives catalysis and other powders.

Feature and Benefits
1. Made of new type of high magnetic rare earth (above 45 MGOe)with high intensity(1.3T~1.5T);
2. High gradient (104) and high magnetization;
3. Maximum particle size is 50mm;
4. Simple and useful mechanical structure;
5. Various vibratory feeder;
6. Separation belt to protect the roll;
7. Up to four rollers for better concentration and higher recovery.
Note: Customized magnetic separators and free sample beneficiation test are available.

Technical Date of Magnetic Separator CR
  ModelCR150x500CR150x1000CR250x500CR250x1000CR250x1500
Magnetic Field Intensity (Gs)12000~1500012000~1500012000~1500012000~1500012000~15000
Motor Power (kw)2.22.22.22.23
Diameter of Roller (mm)150150250250250
Length of Roller (mm)500100050010001500
Feed Power (kw)0.120.120.120.120.12
Feed Partical Size (mm)0.5~50.5~50.5~50.5~50.5~5
Feed Capacity (t/h)1.5~34~52~45~66.5~7.5
Weight (kg)70080090012001400


High Efficiency Dry Type Magnetic Roller Separator Equipment Cr 250*1000

High Efficiency Dry Type Magnetic Roller Separator Equipment Cr 250*1000

Our company
High Efficiency Dry Type Magnetic Roller Separator Equipment Cr 250*1000

Exhibition photos
High Efficiency Dry Type Magnetic Roller Separator Equipment Cr 250*1000

Factory photos

High Efficiency Dry Type Magnetic Roller Separator Equipment Cr 250*1000

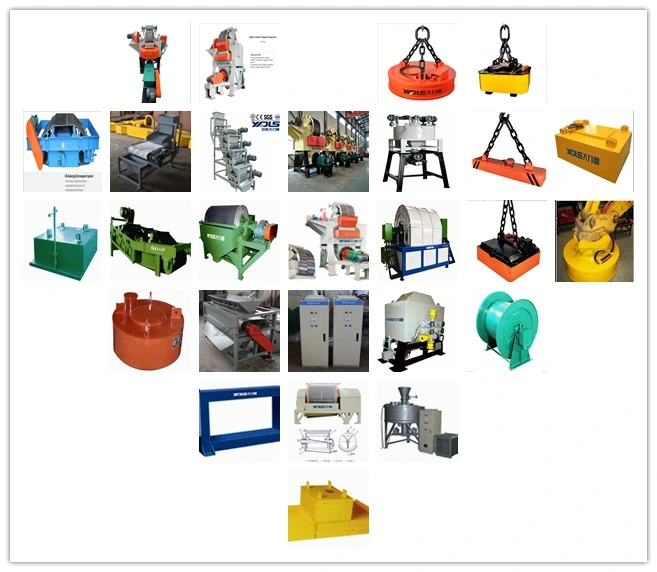

Hot Products
